Industrial Gantry Vacuum Loader Manufacturer | Plywood & MDF Automation

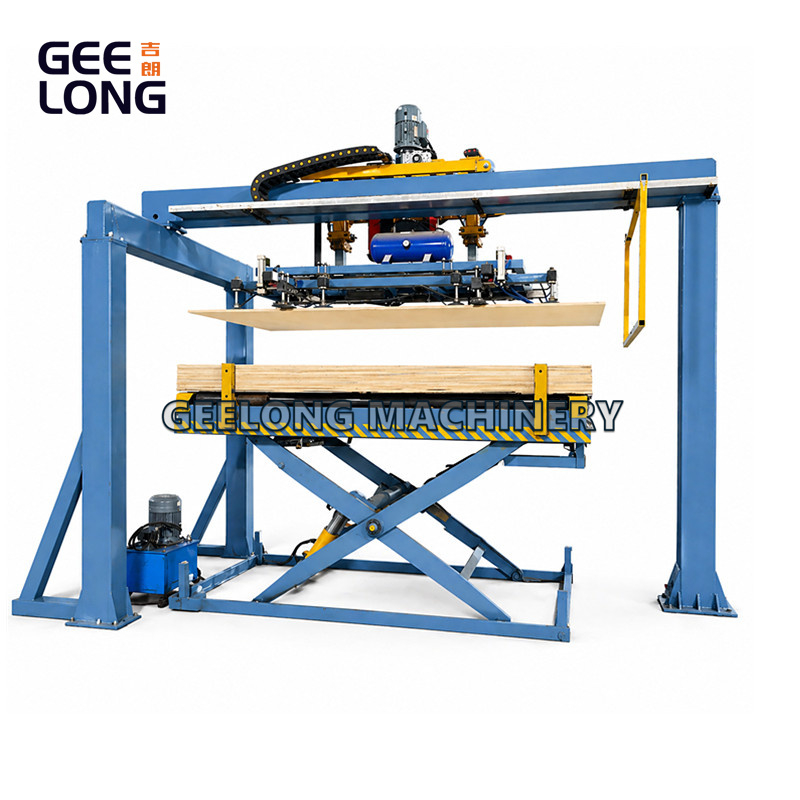

Geelong Gantry Vacuum Suction Loader is a versatile automation solution engineered for high-speed plywood hot press and MDF short cycle laminating production. The robust gantry architecture provides superior stability and a larger working envelope compared to traditional loaders, making it ideal for handling heavy panels and delicate decorative surfaces with maximum precision.
Whether you are running a Plywood Hot Press or an MDF Short Cycle Line, our gantry loader adapts to your needs:

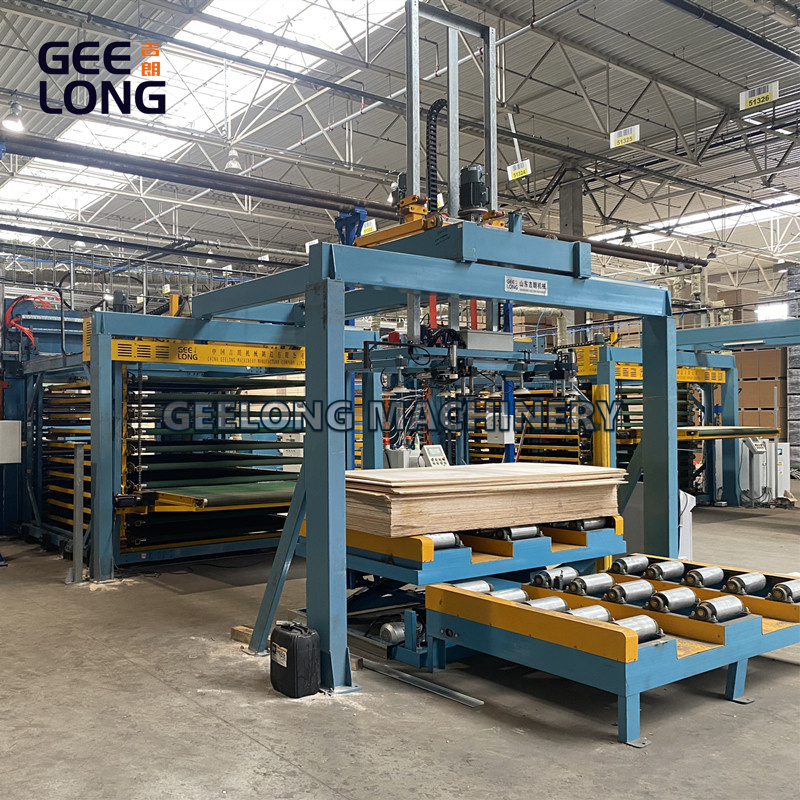

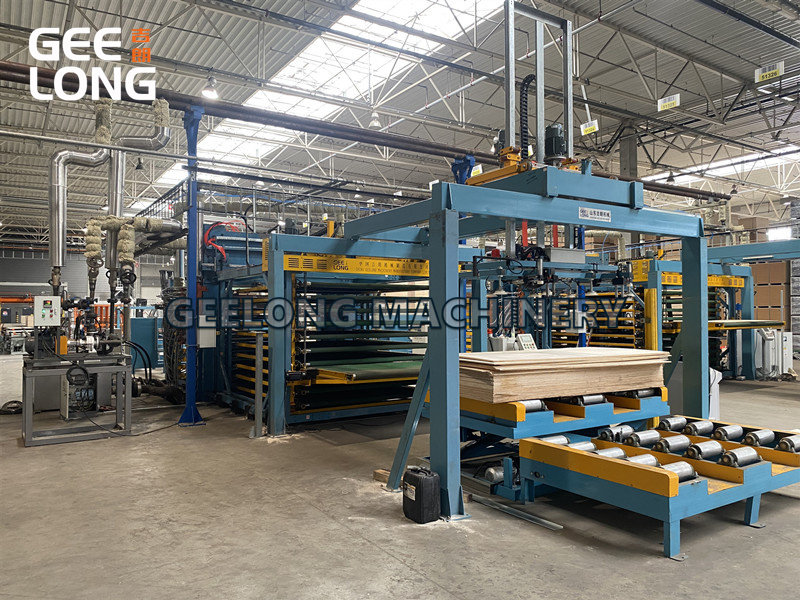

Plywood Hot Press Feeding: Handles multiple board thicknesses with ease, ensuring perfect alignment before entering the press.
MDF Short Cycle Integration: Optimized for rapid cycle times, picking and placing MDF cores onto the melamine-treated paper without any sliding or friction.
 |  |
Key Features & Advantages

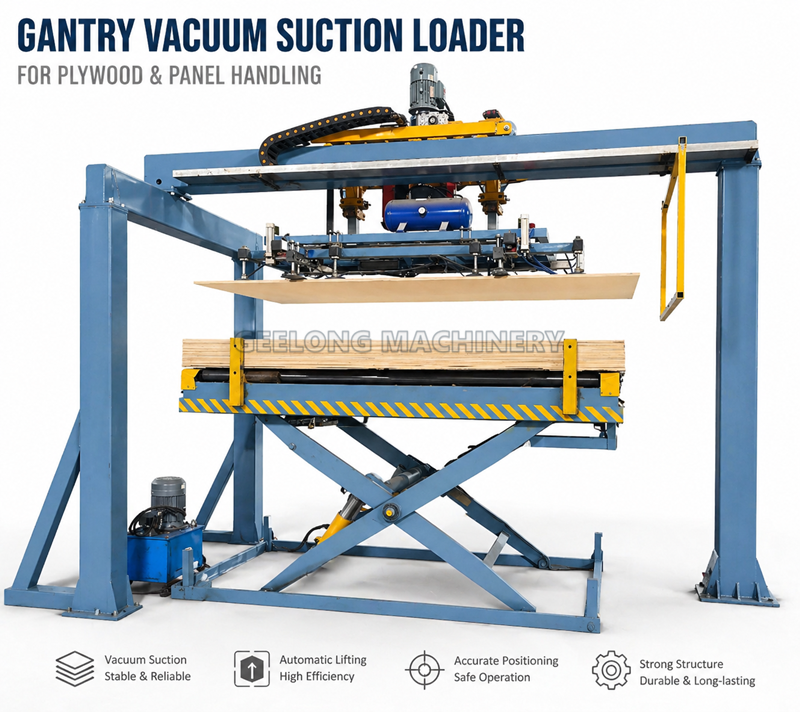

1. Stable Gantry Structure: The four-pillar gantry design eliminates shaking and vibration, ensuring a long service life in 24/7 industrial environments.
2. Advanced Vacuum Technology: Equipped with high-flow, non-marking suction cups that secure the board firmly without leaving residues or scratches on the delicate film or paper surface.
3. Full Servo Motion Control: Independent servo motors (Siemens/Delta) drive the X and Z axes for smooth acceleration and millimeter-level placement accuracy.
4. Flexible Customization: Customizable suction cup configurations and gantry spans to fit your specific board dimensions and factory layout.
Technical Specifications
Feature | Details |
Max Loading Capacity | 50kg - 200kg (Customizable) |
Cycle Speed | Adjustable |
Applicable Boards | Plywood, MDF, HDF, Particle Board |
Driving System | Full Servo Motor / Frequency Inverter |
Accessory Products
 |  |
| Hexa stainlelss steel plate for anti-slip plywood | Plywood hot press plate |
 |  |
| Hydraulic station | Buffering cushion pad |
 |  |
| Hot press machine frame | Hydraulic oil cylinder |
 |  |
| Film faced plywood | Hexa anti slip plywood |
Why Upgrade to a Gantry System?
1. Safety: Minimizes the risk of workplace injuries associated with manual heavy lifting.
2. Productivity: Eliminates bottlenecks in the feeding section, allowing your press to run at its maximum rated speed.
3. Precision: Perfect alignment reduces edge trimming waste and ensures high-quality lamination results.
Note: Our gantry Vacuum Loader are widely used in the construction and furniture industries, certified by CE and ISO9001.
