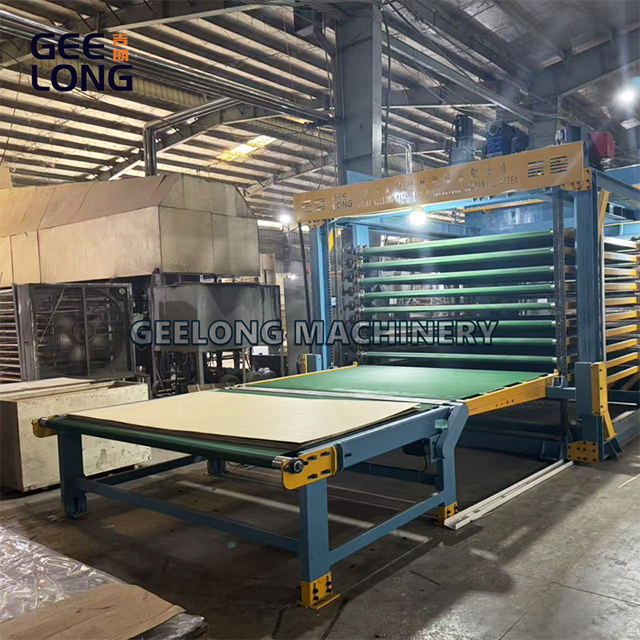

Automatic Plywood Film Overlaying Table with Electrostatic Adsorption

Automatic Plywood Film Overlaying Table with Electrostatic Adsorption

Maximize your laminating efficiency with our Automatic Film Overlaying Table. This specialized belt conveyor system is designed to streamline the "Film-Board-Film" preparation process before hot pressing. By integrating advanced electrostatic adsorption technology, this machine ensures that the phenolic film remains perfectly aligned and securely attached to both the top and bottom of the plywood, even during high-speed transit to the loader.

How It Works: The "Film-Board-Film" Precision Cycle

1. Bottom Film Placement: The operator or automatic feeder places the bottom film onto the conveyor.

2. Plywood Positioning: The plywood core is accurately placed onto the bottom film.

3. Top Film Overlay: A second layer of film is applied to the top surface.

4. Electrostatic Adsorption: The system generates a controlled static charge that "locks" the films to the board.

5. Automatic Discharge: The prepared board is automatically conveyed into the Plywood Loading Machine without any manual handling or film misalignment.

Technical Specifications

Why This is a Game-Changer for Hot Press Efficiency

The biggest bottleneck in film-faced plywood production is often the manual laying of film. If the film shifts by even a few millimeters during loading, the result is a wasted board. Our Electrostatic Overlaying Table eliminates this risk, ensuring every board enters the press in perfect condition, allowing for faster cycle times and consistent quality.
