Automated Formwork Spray Painting Booth with Robotic Arm

Automated Formwork Spray Painting Booth with Robotic Arm

Maximize your construction formwork finishing efficiency and reduce coating waste with our state-of-the-art

Automated Formwork Spray Painting Booth. Designed for heavy-duty industrial applications, this turnkey coating line integrates high-precision automation with advanced environmental protection technology to deliver flawless results for steel, aluminum, and wooden formwork panels.

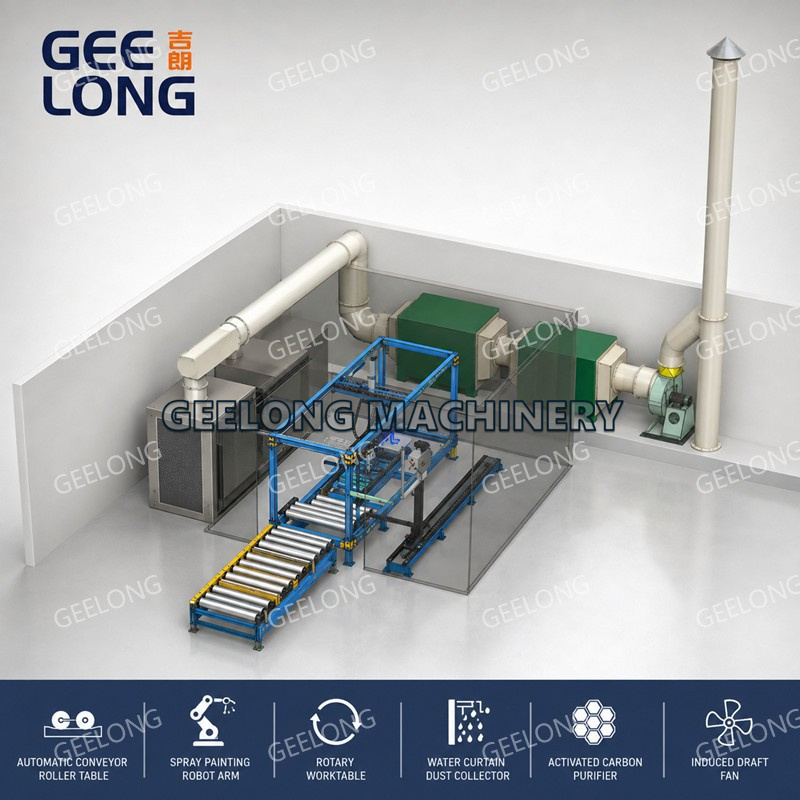

This system integrates an automatic conveyor roller table, an intelligent robotic spray arm, and a flexible rotating workbench. To ensure a safe, eco-friendly workspace, it features a dual-stage water curtain dust collector and an activated carbon purification unit powered by a high-efficiency induced draft fan. Boost productivity, reduce paint waste, and meet strict environmental standards effortlessly.

Key System Components & Features:

1. Automatic Conveyor Roller Table: Ensures smooth, continuous material feeding and handling throughout the painting process, minimizing manual labor.

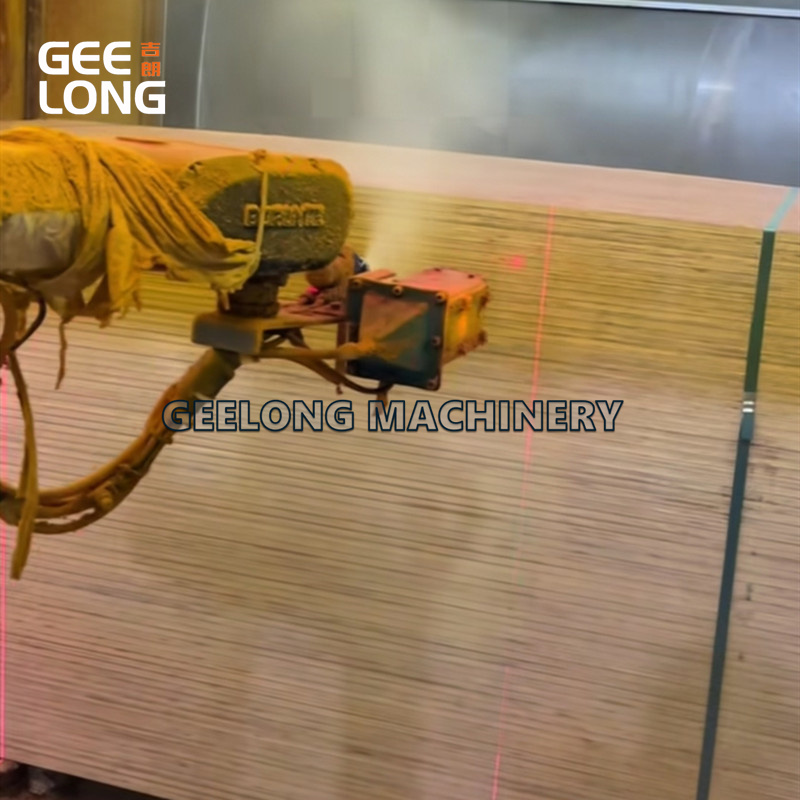

2. Intelligent Robotic Spray Arm: Programmed for high precision, ensuring an even paint layer, optimal film thickness, and reduced overspray.

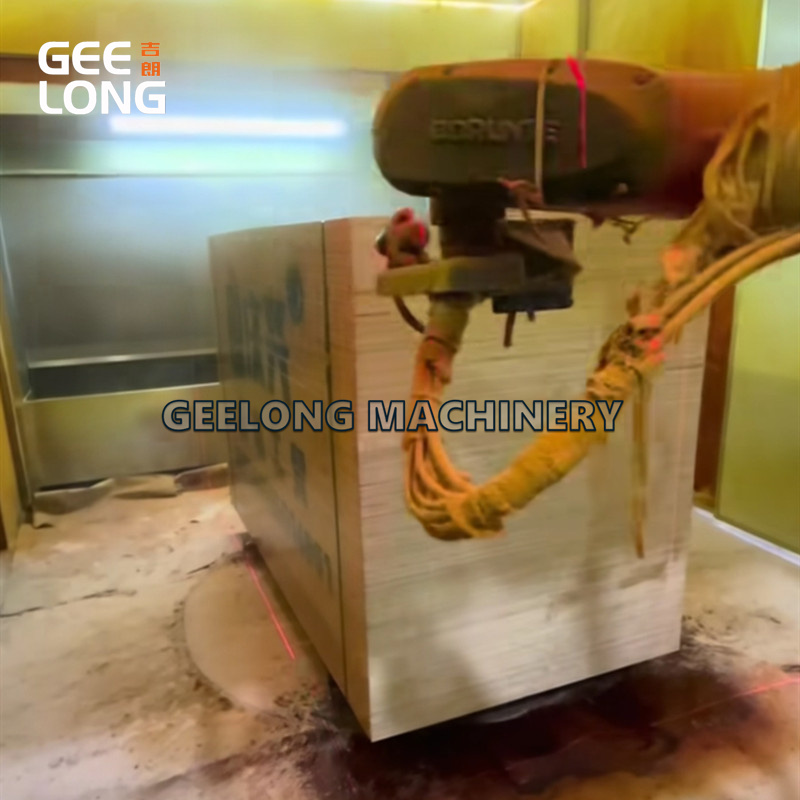

3. Flexible Rotating Workbench: Allows multi-angle coating to cover complex formwork shapes and edges seamlessly.

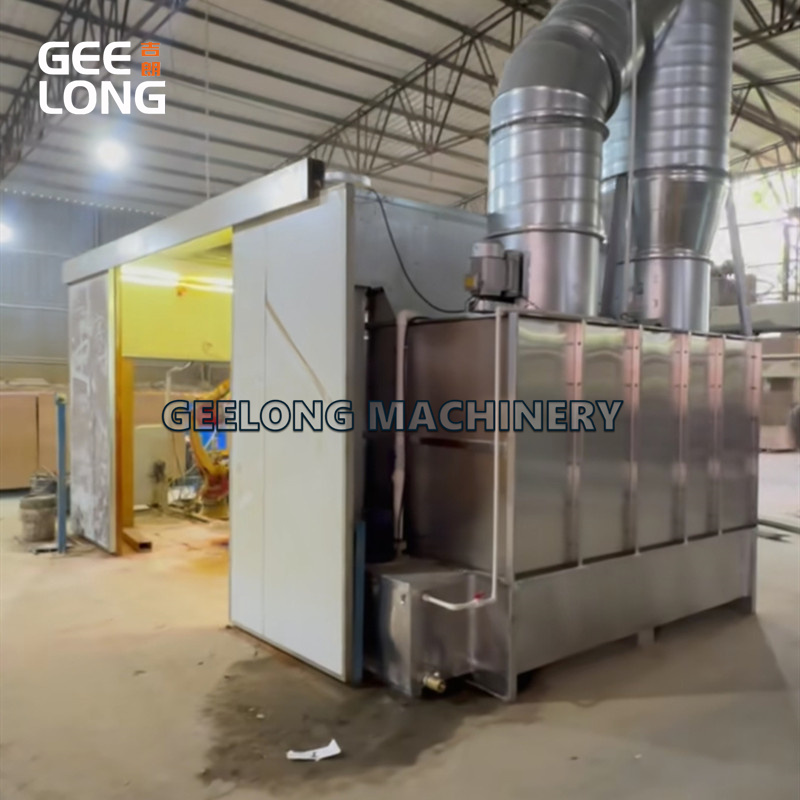

4. Water Curtain Dust Collector: Efficiently captures paint mist and airborne particles at the source, protecting operators and keeping the workspace clean.

5. Activated Carbon Purification & Induced Draft Fan: Advanced VOC filtration system treats exhaust air to meet strict environmental emission standards before clean discharge.
