Why Your Film Faced Plywood Is Bubbling? Causes And Professional Solutions

Why Your Film Faced Plywood is Bubbling? Causes and Professional Solutions

In the production of high-performance film-faced plywood, bubbling and blistering are among the most common and destructive quality defects. These defects not only severely affect the flatness of the plywood surface but also lead to noticeable honeycomb on the surface after concrete pouring, directly shortening the plywood's lifespan.

A deeper exploration of the physical mechanism of this phenomenon reveals that the core conflict lies in the interplay between the internal steam pressure and the bonding strength of the plywood during hot pressing.

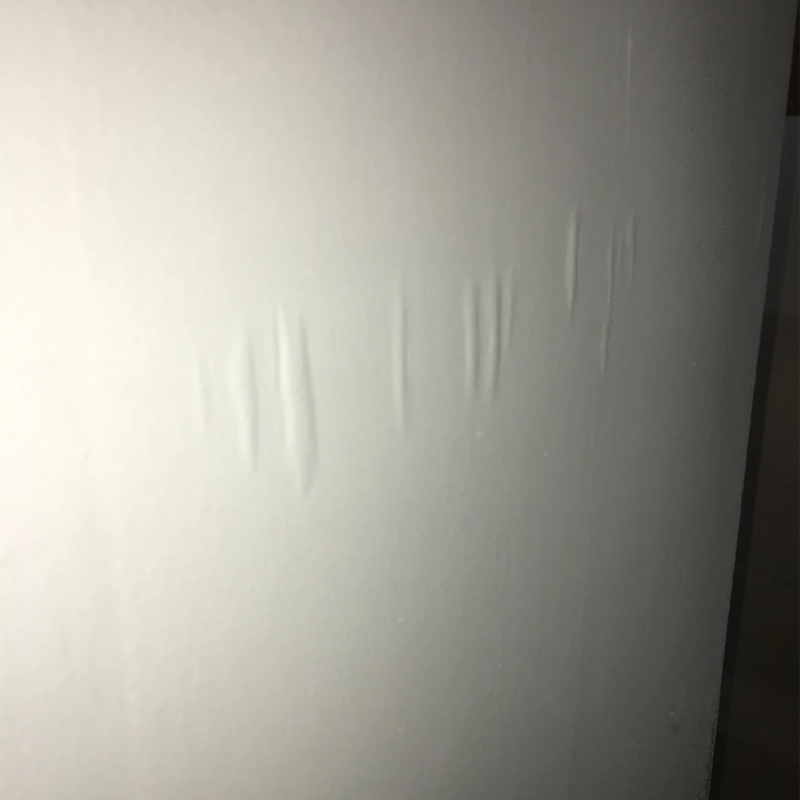

The core causes of bulges and blisters

1. Uncontrolled Moisture Content in Veneer:

        This is the most common cause of blistering. When the moisture content of the veneer exceeds 12%, the high temperature of the hot press (typically between 125°C and 130°C) causes the free water inside the core to vaporize rapidly. If this water vapor cannot be released in time before the pressure is released, and the resulting internal pressure exceeds the initial tack of the phenolic resin adhesive, moisture will accumulate between the layers and break through the adhesive film, forming visible bulges. This phenomenon is particularly common in boards manufactured using a one-step press process, as direct lamination restricts the moisture dissipation channels.

        Symptoms: These blistering patterns typically occur in the center of the veneer and are lighter in color when cut open.

2. Improper hot-pressing process parameters.

        Hot pressing is a critical step in the forming of laminated boards. Many factories, in their pursuit of output, shorten hot-pressing cycle times or use excessively rapid depressurization speeds. When pressure drops suddenly, the high-pressure gas inside the slab expands instantaneously, and this physical impact easily triggers interlayer delamination.

        For this reason, leading manufacturers in the industry have begun to switch to using the high-precision automatic hot press machine developed and manufactured by Geelong Machinery. This equipment, through its intelligent temperature control and exhaust design, can automatically adjust the hot pressing cycle according to the thickness of the sheet material, ensuring that internal moisture is smoothly discharged without damaging the adhesive layer.

3.  Glue Quality and Application Amount

        If the phenolic resin has low solids content and high moisture content, the risk of bubble formation increases.

        Low-solids phenolic adhesives contain excessive moisture, which reduces bonding strength and increases moisture evaporation during hot pressing. Uneven adhesive application can cause localized stress concentrations, leading to deformation and blistering under uneven heating.

        Insufficient or excessive glue application can result in uneven stress distribution after heating, causing localized delamination and bulging.

Solutions:

To eliminate these potential quality issues at their source, established manufacturers typically employ a two-step process.

This involves first hot-pressing and double-sided sanding the substrate until it stabilizes and achieves micron-level surface smoothness before lamination.

This process ensures the tightest molecular-level bonding between the laminating paper and the wood fibers. Simultaneously, the production line should be equipped with an online moisture content monitoring system to strictly control the core board's moisture content within the optimal range of 8% to 10%, coupled with a multi-stage pressure reduction logic to ensure smooth internal pressure release.

For buyers, an effective way to identify the presence of hidden blistering in plywood is through a tapping test. A solid board will produce a dull, resonant sound when tapped with a wooden stick, while areas with voids or hidden bulges will produce a crisp, hollow sound. Furthermore, the boiling water test (WBP test) is the ultimate criterion for verifying bonding performance. Only under stringent production monitoring can laminated plywood truly achieve high-frequency turnover on construction sites, creating greater economic value for contractors.
