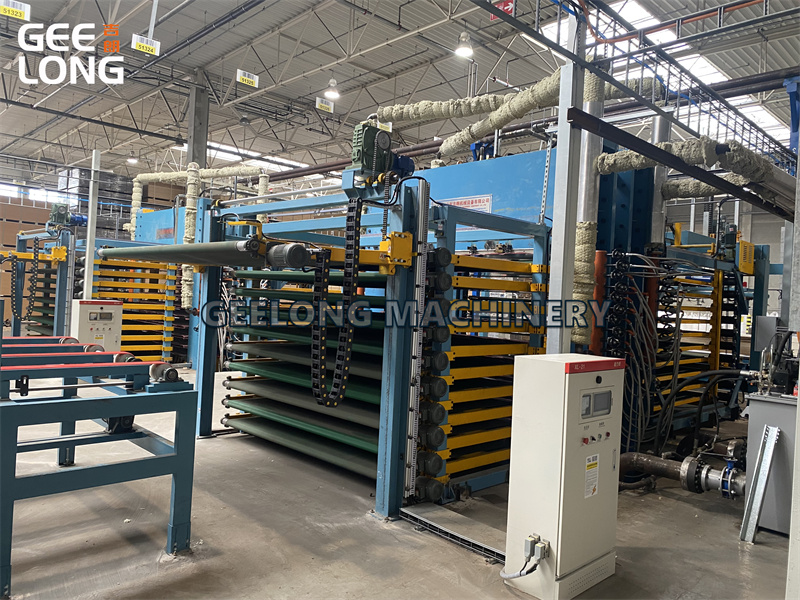

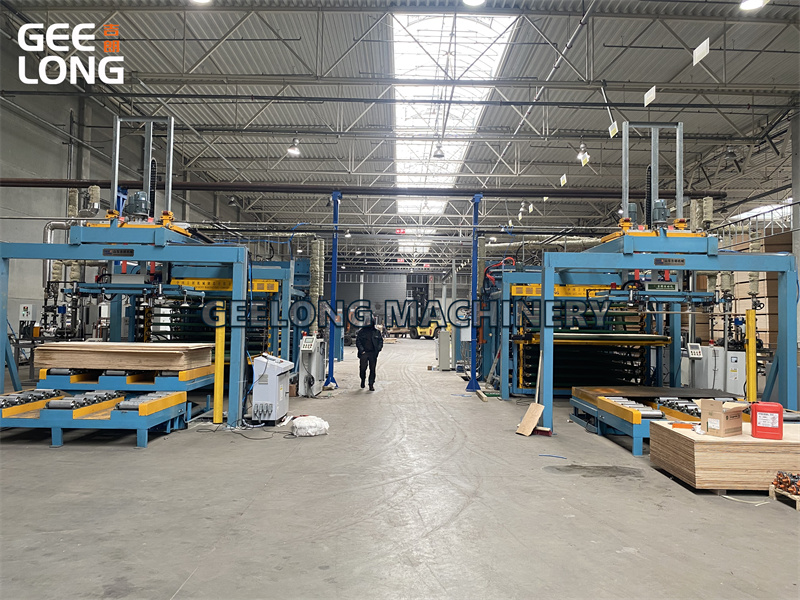

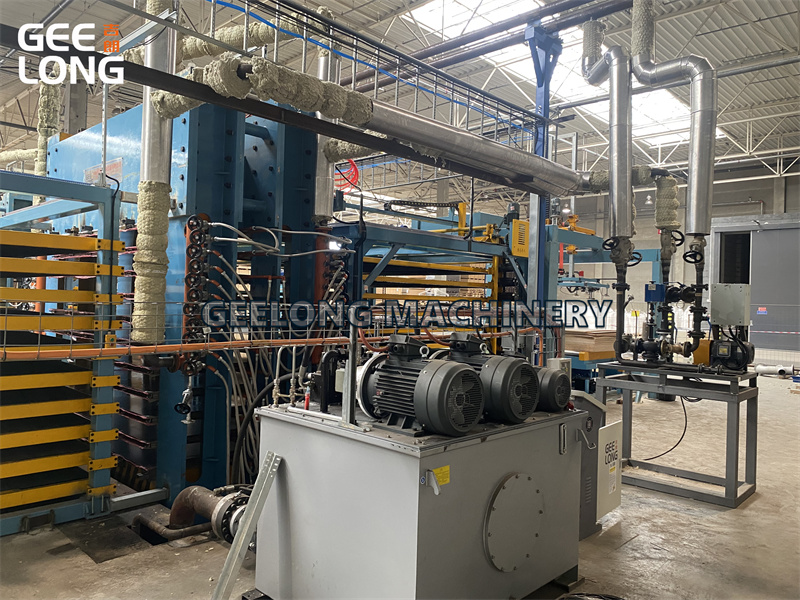

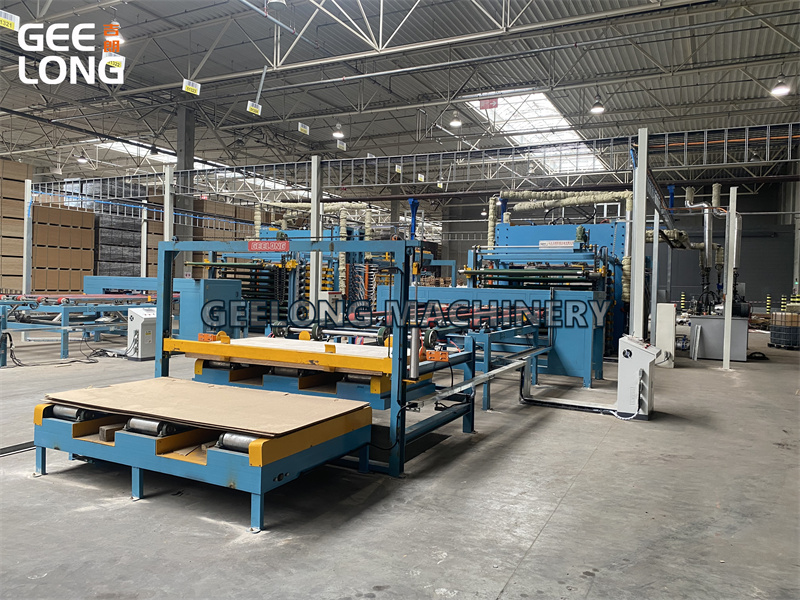

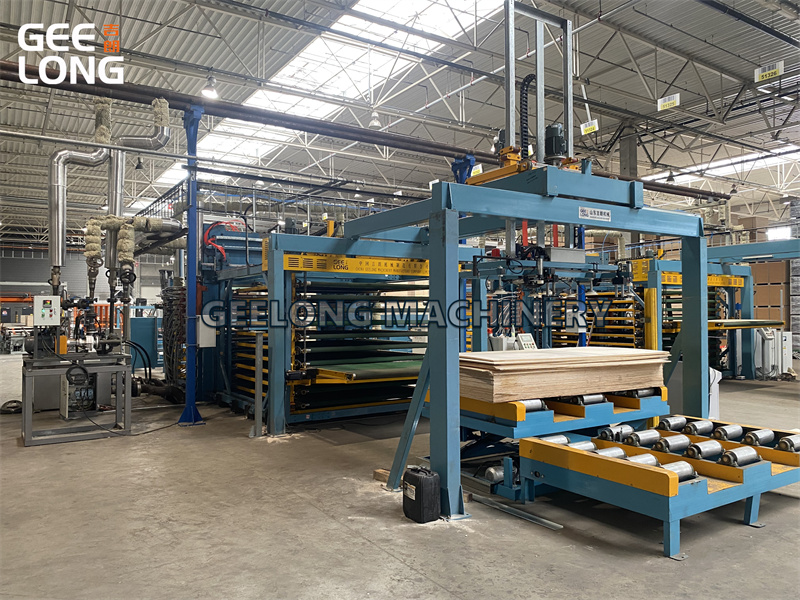

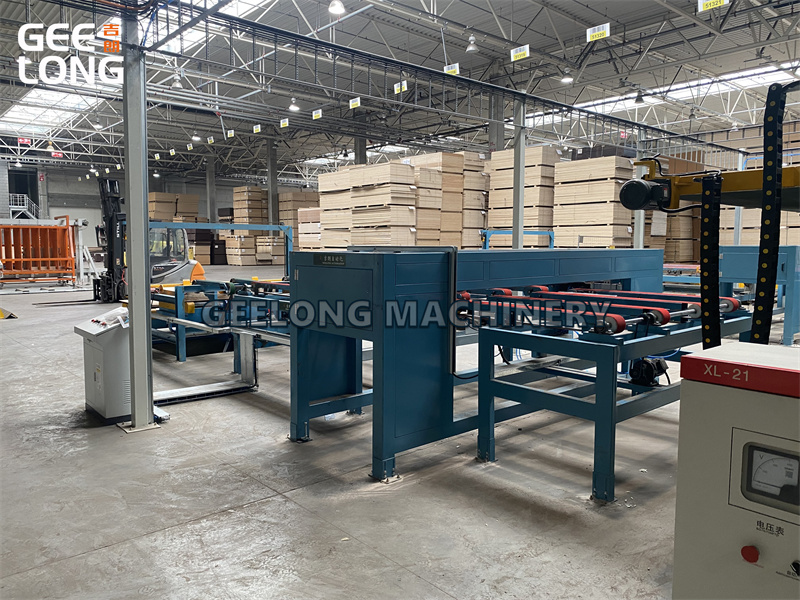

4x8ft Automatic Film-Faced Plywood Lamination Line Successfully Commissioned

The automatic film-faced plywood laminate hot pressing machine can press high-gloss, matte, and non-slip phenolic board surfaces and is mostly used for plywood veneer manufacture. Additionally, it can be used to dry and shape plywood and boards, as well as to press and paste different ornamental elements on the surface of plywood.

Features of the hot press machine:

1. Frame structure: The steel plate is a high-hardness solid steel, and the frame is thick and composed of high-resistance steel.

Set up guide posts to provide improved flatness when pressing.

2. Oil cylinder: Special thick steel seamless tubes are used to make cylinders.

Robotic equipment controls every aspect of the welding process.

In order to prolong the cylinder's life, CNC machining guarantees strict minimum tolerances in operation.

3. The pressure speed is electrically modified during the pressing operation.

4. A pressure control device that uses a microprocessor to manage the electronics The press button automatically sets the pressing parameters.

5. A digital device for independent electronic platen temperature management.

6. A digital pressure gauge to regulate the pressure.

7. A two-channel temperature and pressure graph recorder with a sensor and probe.

Applications of Film-faced Plywood:

Film Faced Plywood is a high-strength plywood panel coated with a smooth phenolic film on both sides. The film provides excellent waterproof, abrasion-resistant and anti-corrosion performance, making it ideal for concrete formwork, construction structures, bridges, and industrial use. The sealed edges improve moisture resistance and allow multiple reuse cycles.

Anti-Slip Film Faced Plywood features a textured phenolic film on one side for enhanced skid resistance, while the reverse side remains smooth. It is widely used for truck and trailer flooring, scaffolding platforms, warehouse walkways, loading ramps, and other areas requiring safe, non-slip surfaces.

Geelong Group specializes in film faced plywood equipment, providing professional solutions for film faced plywood, construction formwork, and anti-slip plywood production.
